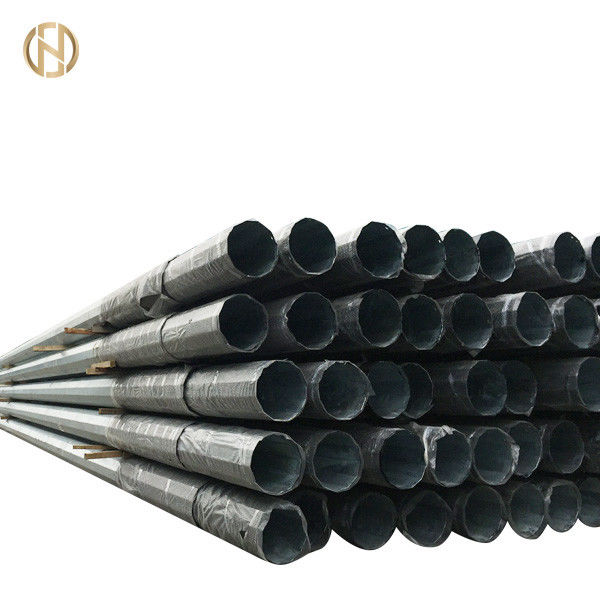

Q460 Electrical Power Post Amercian Stardand For 33KV Overhead Transmission Lines

Brand Name:	FUTAO
Model Number:	FTGG - 0 38 917
MOQ:	2 قطعه
قیمت:	$100 - $400
Delivery Time:	15 - 30 workdays
Payment Terms:	L/C ، T/T

Detail Information

Product Description

Detail Information

محل منبع:

چین

گواهی:

ISO 9001 : 2008

قد:

2M - 50 متر

ضخامت:

2.5 میلی متر - 20 میلی متر

Material:

Q235, Q345, Q420, Q460, Gr 50, Gr60, SS400, etc.

شکل:

چند ضلعی یا مخروطی

Color:

According to clients' requirment

درمان سطحی:

گالوانیزه گرم گرم

جوشکاری:

AWS D 1.1

Packaging Details:

40HC or OT, wrap by mat or straw mat

Supply Ability:

1200 pieces every week

برجسته کردن:

electric line pole,electric power post

electric power post

Product Description

Q460 Electrical Power Pole, Amercian stardand,33kv tranmission power

Product Description

Designed for 33KV overhead transmission lines. Custom poles with custom dimensions can be designed if required. Our in house engineers are here to help. Please contact customer service for any enquiries you may have.

Specifical Details

Product Name	Steel Power Pole
Type	Overhead Transmission Line Monopole
Height	4m - 60m
Thickness	2mm - 10mm
Shape	Custom Shape
Surface Treatment	Hot Dip Galvanization according to ASTM A123 standard
Color	Varied
Ground Mounting	Anchor Bolt,Telescopic Joints, Direct Burial
Voltage	33KV - 520KV
Material	Q235, Q345, Q420, Q460,etc
Welding	Welding complies with AWS D1.1 standard CO²welding or Submerged Arc Auto methods No scarring, burrs, craters, spatters, distortions, defects of any kind No Welding Defects
Life Expectancy	More than 20 years
Qualification	ISO9001-2015, AAA Credit Rating
Wind Resistance	150 km/h
Earthquake Resistance	Against earthquake of grade 8

Additional Details

Design Code: American Standard ASCE/SEI 48-11

Design Software: PLS-POLES software

Export Coverage: Asia-Pacific, Central & South America, Europe, Middle East, Africa

Testing : Loading Tests may be conducted on site if required

Production Process

Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling→ Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

Q460 Electrical Power Post Amercian Stardand For 33KV Overhead Transmission Lines 0

Product Details

Q460 Electrical Power Post Amercian Stardand For 33KV Overhead Transmission Lines 1

Testing

Q460 Electrical Power Post Amercian Stardand For 33KV Overhead Transmission Lines 2

Welcome to our factory!
