Bitumen Electric Power Transmission Pole 5.3KN - 20KN Black 98% Zinc Painting

Name: Bitumen Electric Power Transmission Pole 5.3KN - 20KN Black 98% Zinc Painting
Brand: Yixing Futao Metal Structural Unit Co. Ltd
SKU: 5.3KN
Price: 1,131.00 USD
Availability: InStock

Brand Name:	FUTAO
Model Number:	5.3KN
MOQ:	5 قطعه
قیمت:	$151 - $2111
Delivery Time:	45 روز کاری
Payment Terms:	L/C ، T/T

Detail Information

Product Description

Detail Information

محل منبع:

چین

گواهی:

ISO9001

Application:

it is widely used in cemented carbide materials grinding milling etc

Chemical composition:

c, bi , ni ,nickel nomo powerder ,

Material:

ASTM GR65, GR50, Q460, A572,c

Dimensions:

base on client requirment.

Shape:

needle/powder/granule/shot

Packaging Details:

Wrap by mat or straw mat

Supply Ability:

Please talk with our staffs to get more details

برجسته کردن:

metal utility poles,electric power pole,Bitumen Electric Power Pole

electric power pole

Bitumen Electric Power Pole

Product Description

Power Transmission Poles 5.3KN~20KN Bitumen Electric Power Pole , metal power pole black 98% zinc painting

Product Description

The products above are custom poles meant for overhead transmission lines.

Power Transmission Poles 5.3KN~20KN Bitumen Electric Power Pole , metal power pole

We can produce poles of various heights and dimensions for every situation.

To design in accordance with PLS software, we will require the following design parameters:

Type	Power Transmission Poles 5.3KN~20KN Bitumen Electric Power Pole , metal power pole
Suitable Uses	Power Distribution
Shape( Cross section)	Tubular, Polygonal or Conical
Power grade	10 KV 11KV 15KV
No of Section	One
Length (m)	14.5Metre
Foundation	Direct burial- 2m
Working Load	530daN, 5.3KN
Breaking Load	1060daN, 10.6KN
Safety Factor
	Other materials may be used as per request (Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52)
Minimum Yield Strength	420 mpa
Minimum Ultimate Tensile Strength	520 mpa
Max Ultimate Tensile Strength	650mpa
EL %	>=15%
Top diameter(mm)	150
Bottom diameter(mm)	305
Min Thickness(mm)	>=4.1mm
Tolerance of Dimensions	+- 1%
Engraving	Name plate through rivet or glue ,engraving ,embossment as per customers’ requirements
Surface Treatment	Hot Dip Galvanization according to ASTM A123 standards/Powder Coating
Joint of Poles	Insert Mode, Inner Flange Mode, Face to Face Joint Mode.
Loading Conditions
Maximum line deviation	0-3 degree
Design Wind Speed (Extreme Wind)	43m/s
Circular Shape Factor	1.1
Maximum Deflection (Extreme Wind)	10% of overall pole length
Welding	Internal and external double welding process produces a seamless surface Welding Standard :AWS ( American Welding Society ) D 1.1

Packaging & Shipping

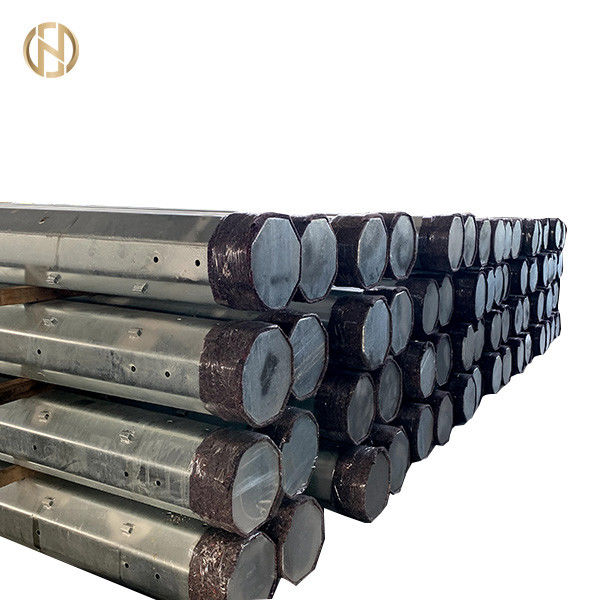

We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.

Bitumen Electric Power Transmission Pole 5.3KN - 20KN Black 98% Zinc Painting 0

Our Service

1. All enquiries are replied within 24 working hours.

2. Customized designs are welcome. UEM & UBM are welcome.

3. Not sure about where to start? Have questions regarding any our products or design? Our well-trained and professional engineers and staff are here to help.

4. Special discount and protection of sales are provided to our distributors.

5. State of the Art Factory with highly specialized machinery focused on producing various types of steel poles with over 20 years of experience and expertise to deliver you quality products that you can trust at competitive prices.
