قطب فولادی لوله ای
Created with Pixso. 19M 3000daN 60FT Tubular Tapered Steel Pole Monopole Tower For Transmission Line

19M 3000daN 60FT Tubular Tapered Steel Pole Monopole Tower For Transmission Line

Brand Name: Futao
Model Number: 19 متر -3000 daN
MOQ: 1 قطعه
قیمت: $1000 - $6000
Delivery Time: 45 روز کاری
Payment Terms: L/C ، T/T ، MoneyGram
Detail Information
محل منبع:
چین
گواهی:
ISO9001:2008
درمان سطحی:
گالوانیزه گرم گرم
قد:
19 متر
ضخامت:
17 میلی متر
رنگ:
رنگ خاکستری
مادی:
Q235، Q345، Q420، Q460، GR50، GR60، SS400
شکل:
هشت ضلعی
جوشکاری:
AWS D 1.1
جزئیات بسته بندی:
بسته بندی 40HC یا OT توسط حصیر یا حصیر نی
قابلیت ارائه:
هر ماه 5000 قطعه
برجسته کردن:

tubular steel post,steel tubular swaged pole

,

steel tubular swaged pole

Product Description

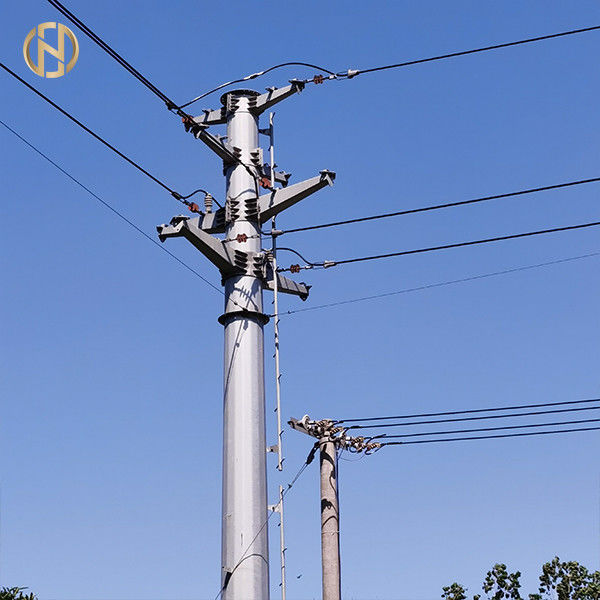

                                         19M 3000daN 60FT Tubular Steel Pole,Tapered steel pole,monopole tower



Product Description


The products above are 19M 3000daN 60FT Tubular Steel Pole,Tapered steel pole,monopole tower

made specifically for power distribution between 69kv

To design in accordance with PLS software, we will require the following design parameters:


  1. The operational wind speed of the region where the pole will be used
  2. The Antenna load and height of the pole
  3. The total height of the pole itself

Product Specifications

Carbon (C), % 0.071/0.085 0.18 max Passed
Manganese (Mn), % 1.223/1.235 1.8 max
Phosphorus (P), % 0.014/0.014 0.03 max
Sulfur (S), % 0.0067/0.0034 0.03 max
Silicon (Si), % 0.155/0.139 0.60 max
Niobium (Nb), % 0.016/0.015 0.11 max
Copper (Cu), %   --
Nickel (Ni), %   --
Chromium (Cr), %   --
Aluminum (Al), %   --
Columbium (Co), %   --
Vanadium (V), %   --
Titanium (Ti), %   --




Type 119M 3000daN 60FT Tubular Steel Pole,Tapered steel pole,monopole tower
Suitable Uses Power Distribution
Shape( Cross section)

Octagonal



Power grade 69kv
No of Section One
Length (m) 19M
Foundation Direct burial- 2.5m
Working Load 3000daN
Breaking Load 6000daN
Safety Factor 2.0
Material

ASTM 572 GR65 or Q460

Minimum Yield Strength 450 mpa
Minimum Ultimate Tensile Strength 550 mpa
Max Ultimate Tensile Strength 690mpa
EL % >=15%
Top diameter(mm) >=320
Bottom diameter(mm) >=600
Min Thickness(mm) >=17.5 mm
Tolerance of Dimensions +- 1%
Engraving Name plate through rivet or glue ,engraving ,embossment as per customers’ requirements
Surface Treatment

Hot Dip Galvanization according to ASTM A123 standards/Powder Coating



Joint of Poles

Insert Mode, Inner Flange Mode, Face to Face Joint Mode.



Loading Conditions
  • Maximum line deviation
0-5 degree
  • Design Wind Speed (Extreme Wind)
32m/s
  • Circular Shape Factor
1.0
  • Maximum Deflection (Extreme Wind)
10% of overall pole length
Welding

Internal and external double welding process produces a seamless surface

Welding Standard :AWS ( American Welding Society ) D 1.1



Packaging & Shipping




We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.



Process of Production


Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
