Corrosion Resistant Pole Accessories , Strain Clamp Electric Fittings

Brand Name:	FUTAO
Model Number:	NLD
MOQ:	10 قطعه
قیمت:	$1 - $10
Delivery Time:	30 روز کاری
Payment Terms:	L/C ، T/T

Detail Information

Product Description

Detail Information

محل منبع:

چین

گواهی:

ISO9001

مادی:

آهن قابل انعطاف

نوع:

نوع پیچ و مهره

کلمه کلیدی:

گیره کرنش

مناسب:

خط انتقال

جزئیات بسته بندی:

بسته بندی با جعبه

برجسته کردن:

power pole hardware,transmission line hardware

transmission line hardware

Product Description

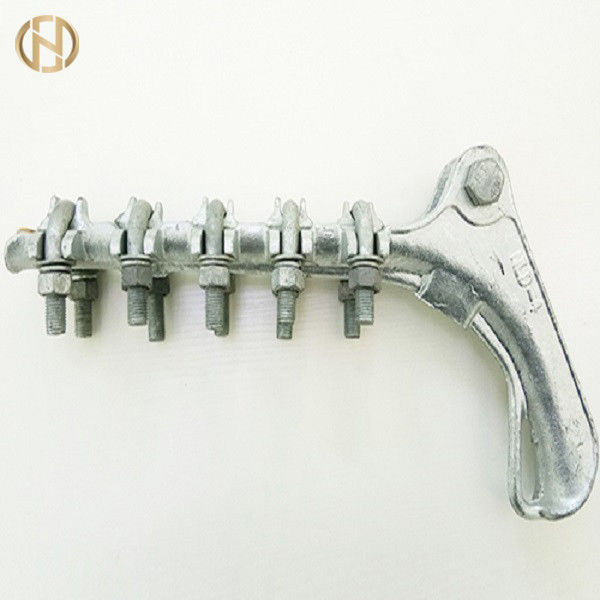

NLD-1 NLD-2 NLD-3 NLD-4 strain clamp Electric fitting clamp pole accessories

Product name	NLD-1 Tension Dead-end clamp
Size	M16
Material	Metal
Finishing	hot-dip galvanized
type	suspension clamp

Product Description

Technical Parameter

Type no	Conductor diameter range (with wrap object)(mm)	Dimension(mm)					U Bolt		Nominal failure load(KN)	Weight (KG)
Type no	Conductor diameter range (with wrap object)(mm)	L1	L2	R	C	M	Qty.	Dia.	Nominal failure load(KN)	Weight (KG)
NLD-1	5.0-10	150	120	6.5	18	16	2	12	20	1.3
NLD-2	10.1-14	205	130	8.0	18	16	3	12	40	2.1
NLD-3	14.1-18	310	160	11.0	22	18	4	16	70	4.6
NLD-4	18.1-23	410	220	12.5	25	18	4	16	90	7.0

The body and keeper are made of malleable iron, the cotter pin is made of stainless steel, other parts are made of hot-dip galvanized steel.

Tin-plated copper alloy blades imbaedded in molded plastic and surrounded with a sealing compound insure electrical contact in 1KV or 10KV overhead distribution networks. A single or double torque-control nut draw the two halves of the connector together and shears off when the teeth have pierced the insulation and made contact with the conductor strands.

Electric performance: expanded wire range rate of the resistance is lower than 2.5

Mechanical performance: the connector has no crack when the lead is broken by pulling

Temperature rise performance: under the condition of big current, the temperature rise the connector is less than the connection lead

Heat circle performance: 200timers per second, 100A/mm2 big current overload, the change of the connection resistance is less than 5%

Water proof performance: resistant to 6kv1minute after 30minutes immersion in water

Fire proof performance: V0 fireproof

Resistance to corrosion: under the condition of SO2 and salt fog the connector can do three times of 14days circle test.

Environment aging performance: under the circumstance of ultraviolet radiation, dry and moist, expose it with change of temperature and heat impulse for 6weeks.
