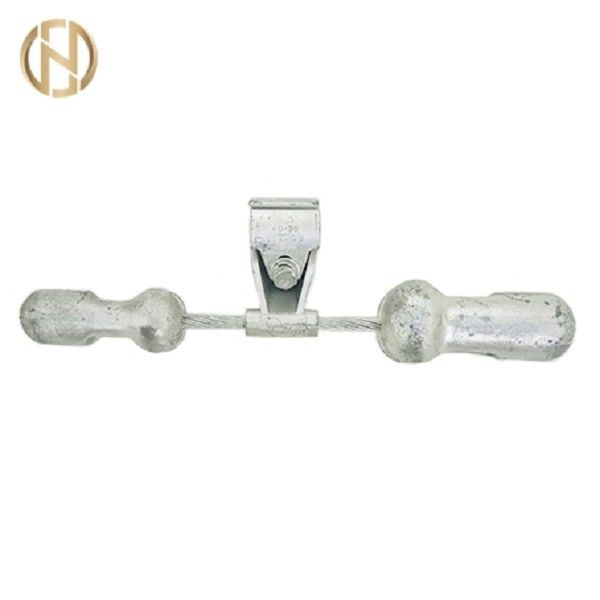

FR Series Stockbridge Vibration Damper pole accessories

Brand Name:	Futao
Model Number:	NLD
MOQ:	10 قطعه
قیمت:	$1 - $16
Delivery Time:	30 روز کاری
Payment Terms:	L/C ، T/T

Detail Information

Product Description

Detail Information

محل منبع:

چین

گواهی:

ISO9001

مادی:

آهن قابل انعطاف

شماره مدل:

از FR-1 تا FR-6

رنگ:

نقره

مناسب:

خط انتقال

جزئیات بسته بندی:

بسته بندی با جعبه

برجسته کردن:

power pole hardware,electric power fittings

electric power fittings

Product Description

FR Series Stockbridge Vibration Damper pole accessories

Vibration damper makes use of rotation & swing of the two-end hammer heads for generating friction damping force from the mutual slippage among the galvanized iron wire strands to consume the swinged energy. It is adopted preformed rod structure in which the holding strength between the installation of vibration damper to preformed rods and the conductors evenly spread the distance from 30 to 60cm on the length area, effectively protecting the conductor by avoiding the stress concentration of the latter. It is of good slippage & antivibration performance as well as superior installation of preformed rods guarantee sustainable, stable & reliable holding strength between the performed rods & the conductors while its high efficient construction will be good for the convenient & reliable checkup.

Its inertia & spiral elasticity can make the damping component generate relative displacement on the conductor swing, consuming vibration energy by effecting viscous damping phenomenon. The more the conductor swings, the more vibration damper consumes energy. Its installation shall take priority on its antinode; as its resonant frequency matches with the vibration frequency of conductor, the energy vibration damper consumes will be up to its maximum value.

Type	Applicable Conductor Diameter (Wrapped Object Included) (mm)	Dimension (mm)							Weight (kg)
Type		D1	D2	A	H	L1	L2	L	Weight (kg)
FR-1	7.0~12.0	48	48	50	81	138	118	429	2.54
FR-3	11.0~20.0	48	48	50	81	138	118	429	2.61
FR-3	18.0~28.0	57	57	60	91	167	146	505	5.00
FR-4	26.0~36.0	64	64	60	97	218	163	550	6.00
FR-5	33~38	64	64	70	127	218	163	550	7.90
FR-6	36~40	74	74	70	127	325	325	650	11.00

FR Series Stockbridge Vibration Damper pole accessories 0
