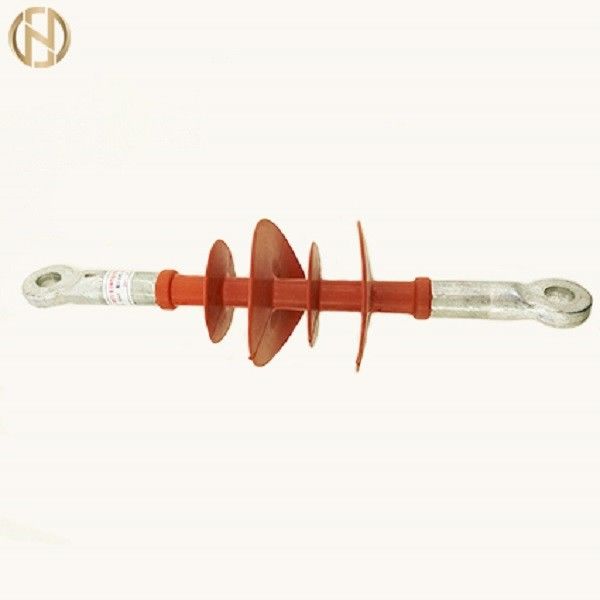

Long Rod Suspension Silicone Rubber Insulator 120KN 24KV Superior Tensile Strength

Brand Name: FUTAO
Model Number: FPQ
MOQ: 10 قطعه
قیمت: $5 - $100
Delivery Time: 30 روز کاری
Payment Terms: L/C ، T/T
Detail Information
محل منبع:
جیانگسو چین
گواهی:
ISO 9001
مدل:
SJI11-24KV
گواهی:
گزارش حسابرسی کارخانه ISO9001 و SGS
مادی:
آهن چکش خوار، آلومینیوم، رزین کامپوزیت
رنگ:
قرمز
استفاده:
خط انتقال
نصب کردن:
آسان
ولتاژ دارای امتیاز:
24 کیلو ولت
استحکام کششی:
70 کیلوگرم
جزئیات بسته بندی:
بسته بندی با جعبه
قابلیت ارائه:
3000 قطعه در هر ماه
برجسته کردن:

electric power fittings,transmission line hardware

,

transmission line hardware

Product Description

Long Rod Suspension Silicon Rubber 120KN 24KV FXBW Insulator





Product Description



Pin Insulator is special for badly polluted areas, high mechanical tension load, long span and compact power line.They have feature of light weight, small volume, unbreakable, anti-bend, high strength for anti-twist and strong explosion protection.

Components:

Core rod: made of FRP rod or ECR rod

Sheds: made from high quality HTV silicone rubber, through high pressure injection moulding techniques to create a smooth surface

End fittings: various pin end fittings made of hot dip galvanized cast steel



Properties & Advantages(the reason to buy!):

1. superior bending and tensile strength

2. electric corrosion resistance

3. excellent corona resistance

4. high pollution resistance

5. superior hydrophobicity/anti-water performance

6. aging resistance

7. anti-leakage trace

8. anti-ipulse property

9. shaking-proof

10. Good brittleness-proof property

11. light weight, convenient installation.



Technical parameter:

FXBW-36/70 Numerical value Unit
Rated voltage 24 KV
Rated mechanical bending load(KN) 70 KN
Structure Height H 425 mm
Minimum creepage distance Power 575 mm
insulating distance Li. 230 mm
Diameter of shed D 88 mm
Lightning impulse withstand voltage(peak) 125 KV
P.F frequency Wet withstand voltage(virtual value) 65 KV
