Galvanized Monopole Steel Metal Power Pole wind resistant

Brand Name:	Futao
Model Number:	9M-200daN
MOQ:	5 تکه
قیمت:	$300 - $1050/ Piece
Delivery Time:	40 روز کاری
Payment Terms:	L/C ، T/T

Detail Information

Product Description

Detail Information

محل منبع:

چین

گواهی:

ISO 9001

درمان سطحی:

گالوانیزه گرم گرم

مادی:

هات رول استیل Q345B، GR65

قد:

9 متر

ضخامت:

2-3.5 میلی متر

روکش پودر:

سفید، آبی، بریده بریده، خاکستری یا بیشتر

مقاومت در برابر باد:

160 کیلومتر بر ساعت

شکل:

گرد یا چند ضلعی

جزئیات بسته بندی:

40HC یا OT، با حصیر یا حصیر بسته بندی کنید

قابلیت ارائه:

2000 قطعه در هر ماه

برجسته کردن:

Monopole Metal Power Pole,Galvanized Metal Power Pole,Monopole steel power pole

Galvanized Metal Power Pole

Monopole steel power pole

Product Description

Hot Sales Manufacturer Galvanized Power Line Monopole

Product Description

The products above are steel utility poles made specifically for 11M tubular pole 450daN 550daN ,hot dip galvanization steel utility pole,low silicon

Products are designed and manufactured according to ANSI/TIA-222-G structural standards
Only our company can comply to these global manufacturing standards which gives us an edge over our competitors
Products are hot dip galvanized according to ISO 1461 Stardand.
Pole shaft material : Q355
Material code : ASTM 572 GR50
We possess the ISO 9001:2015 certification and are committed to giving our customers the best products and service
We provide additional assistance if required including supervision and supplementary components
We accommodate various designs according to our customers’ specifications

To design in accordance with PLS software, we will require the following design parameters:

Product Specifications

Product Name	11M tubular pole 450daN 550daN ,hot dip galvanization steel utility pole,low silicon
Suitable Uses	11kv Power Distribution
Shape	Octagonal.
Material	Q355B/ A572 gr50, Minimum yield strength >= 355n/mm² Q235B/A36, Minimum yield strength >= 235n/mm² Other materials may be used as per request (Q460, ASTM573 GR65, GR50, SS400, SS490, to ST52)
Tolerance of Dimensions	+- 1%
Power	10 -15KV
Safety Factor	2.0
Design Load in Kg	450daN 500daN at 300mm from top
Engraving	Name plate through rivet or glue, engraving, embossment as per customers' requirement
Surface Treatment	Hot Dip Galvanization according to ASTM A123 standards/Powder Coating
Joint of Poles	Insert Mode, Inner Flange Mode, Face to Face Joint Mode
Design of Poles	Against earthquake of 8 grade
Wind Resistance	120 km/h or 32m/s
Minimum Yield Strength	355 mpa or 450mpa
Min to Max Ultimate Tensile Strength	490 mpa - 620 mpa
Standard	ISO 9001
Length per Section	2 Section /1 section
Welding	Internal and external double welding process produces a seamless surface Welding Standard: AWS (American Welding Society) D 1.1
Thickness	3mm, 3.5mm 4mm by design

Packaging & Shipping

We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.

Process of Production

Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

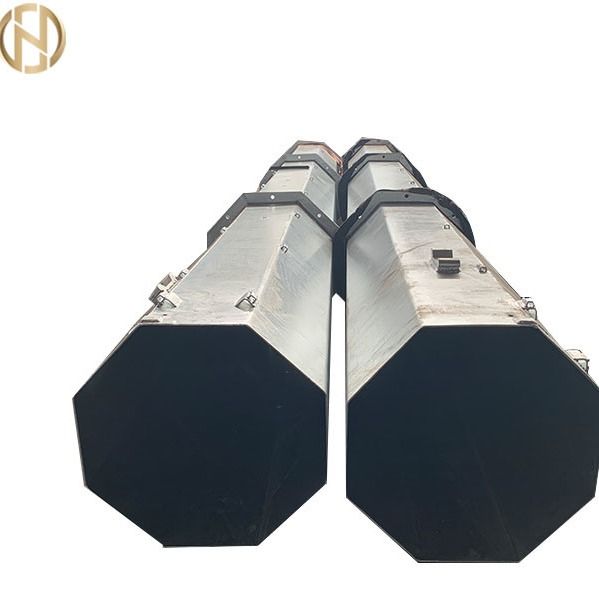

Galvanized Monopole Steel Metal Power Pole wind resistant 0

Welcome to our factory!
